DAD – Digital Audio Denmark

plus24 is the exclusive N. American distributor for DAD products. Find a dealer.

DAD design and engineer pristine AD and DA converters with superb sonic quality, versatile I/O structure and IP Audio via Layer 3 Ethernet.

Up-to 48 analogue audio channels and a flexible digital signal interface, routing and distribution structure. 8 AES3 I/O interfaces; MADI coax and optical; 64 channel interface for Pro Tools; Ethernet IP audio interface for 64 I/O channels using Dante.

DAD Price Sheet PDF

NTP Price Sheet

DAD FAQ

DigitalAudio.dk

DAD AX-32 DX-32

NEWS – DAD ADDING SPEAKER CORRECTION FOR AX32

Oct 15th 2017
New Pro | Mon | 3 monitor control software for the AX32 audio-routing and converter interfaces, along with the MOM hardware controller and speaker-correction processing for up to a full 64 channel Dolby Atmos setup, is here.

Read the news story...

AX 32 | AD/DA Converter & Digital Audio Matrix

8 TO 48 CHANNEL A/D-D/A CONVERTER WITH DIGITAL AUDIO MATRIX

Pristine AD and DA conversion with superb sonic quality, versatile I/O structure and IP Audio via Layer 3 Ethernet. The AX32 has enhanced performance in terms of sonic quality of the AD and DA conversion, up to 48 analog audio channels, and a flexible digital signal interface, routing, and distribution structure.

With all I/O card and options installed, you can control a 1,500 x 1,500 matrix of audio channels. 8 I/O cards and 2 I/O modules can be installed.

FLEXIBLE AD/DA INTERFACE CONFIGURATION W/ MIC-PRE OPTION

  • Versatile digital interface structure
  • Easy control of converter parameters
  • 8 to 48 analogue channels
  • 8 channels on a card. Up-to 6 analogue card can be installed
  • 8 ch. Line in AD card and 8 ch. Line/Mic pre in AD card
  • 8 ch. Line out DA card with output level control
  • Sample rates 44.1 kHz up-to 384 kHz/DSD
  • High precision internal clock and PLL

VERSATILE DIGITAL INTERFACE STRUCTURE

  • 8 AES3 I/O interfaces
  • MADI coax and optical I/O
  • 3G SDI embedded audio I/O
  • Ethernet IP audio interface for 64 I/O channels using Dante™
  • Synch via word clock, AES11, Video, and all digital I/O
  • Adapt to incoming sample rate

EASY CONTROL OF CONVERTER PARAMETERS

  • Settings control via front panel knobs and large LCD display
  • Operation via DADman control software for Windows and OSX
  • Ethernet control interface
  • Compliant with the Dante Ethernet controller

DX32R | Digital Audio Bridge

DX32 is a versatile digital audio interface and matrix designed for multiple audio applications such as multi-room recording studios, post-production facilities and audio distribution installations. It allows all digital input and output routing to be managed on a mono channel basis within a single unit or a combination of units.

With near zero latency, the DX32 can be used to expand I/O channel count and interface digital components, providing a high quality bridge between AES/EBU, MADI, Pro Tools HDX and the Dante IP audio network.

DX32R include a 384x384 multiplexer, enabling all digital inputs and outputs to be routed in any combination; this enables the unit to also split signals for advanced signal distribution.

Key Features

  • 8 AES3 I/O interfaces, 16 channels I/O
  • 1 MADI coax I/O, 64 channels I/O
  • 2 optional MADI optical I/O, 128 channels I/O
  • 2 interfaces for Pro Tools (TM) , 64 channels I/O
  • Ethernet IP audio interface for 64 I/O channels using Dante™
  • High precision internal clock and PLL

Key Benefits

  • Flexible patching and routing of digital audio signals
  • Stand alone IP audio interface and format converter
  • Interface for major digital audio workstations
  • Low latency, tightly synchronized, transport of uncompressed audio over IP networks using off the shelf switches

IP AUDIO POWERED BY DANTE
DanteThe DX32R IP Audio protocol is based on the robust tried-and-tested Dante™ digital audio network technology, and will interoperate with products of other brands that comply with Dante.

The protocol will provide AVB as well as AES67 support once standardization is fully completed. The Dante and NTP IP Audio formats provide fast, flexible, and economical audio routing via IP and are compatible with the AX32 AD/DA converter, and other Dante devices. The IP Audio routing provides low latency, tightly synchronized, transport of uncompressed audio over Gigabit IP Ethernet Layer 3 networks using off the shelf switches, and routers for audio routing via one or more sub-nets.

A total of 512 channels can be routed on a 1 Gigabit network, and more if the network capacity is higher.

DaDman Control Software

DaDman Control SoftwareDADman is a software application for control of the DAD AD/DA converters. DADman v.5.x can run on both Windows PC with XP/W7/W8 or MAC PC with OS X version 10.9, 10.10. and 10.11. DADman 5.x supports control of the following products:

  • DAD AX32
  • DAD DX32
  • DAD AX24
  • Plus NTP Penta 720 and Penta 721

Features

  • Complete control of the interface parameters
  • A/D Analogue Input and Mic pre control
  • D/A output level control
  • Routing Matrix control
  • Settings configuration
  • Controls multiple units
  • Avid(TM) Eucon and PRE compatible
  • Flexible Monitor control configuration
  • Pro | Mon monitor control (optional)
  • Cue | Mix zero latency mixer

AX32 & DX32 Audio Interface Brochure

The AX32 and DX32 make a powerful I/O and routing combination with DADman Control Software.

AX32 DX32 Brochure

PRO | MON Monitor Control Option for AX32 and DX32

FOR AX32 AD/DA CONVERTER AND DX32 DIGITAL AUDIO BRIDGE

Complete monitor control is an essential part of an efficient workflow if your deliver in surround or 3D audio formats. Set up any monitoring workflow with AX32 or DX32 and add Pro|Mon license for dedicated monitoring features such as bass management, room correction and more.

Features

  • Monitor controller with talkback, summing and folddown
  • Control via EUCON 3 from Avid™ S6, S3, MC Pro and 5-MC
  • Built-in matrix for flexible routing and digital insert
  • Configurable for any audio format eg. mono, stereo, 5.1, 7.1, 9.1, and up-to 64 ch. multi channel
  • Pristine A/D and D/A conversion and optional mic pre
  • Digital I/O via MADI, AES3, Dante™ and SDI
  • Direct connection to Pro Tools HD / HDX / HD Native cards
  • Fixed 7 sample latency on all signal paths and 32 bit floating point summing processing

DADman EUCON Control

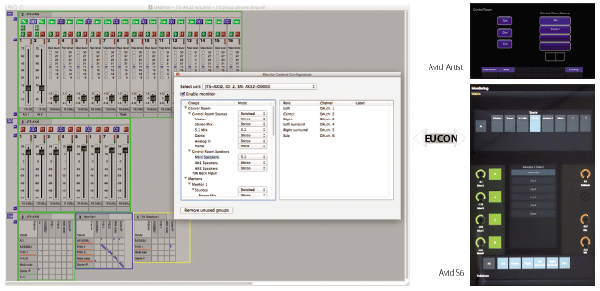

The complete monitor control system consist of an AX32 or DX32 converter interface with a DADman software application running on a Windows or a MAC computer, which is communicating via EUCON on a Gigabit Ethernet enabling the operation of the monitor control from the Avid S6 Control Surface.

Deadman S6 Artist

Monitor Matrix and Processing

Monitor ControlThe monitor control is able to set the listening levels, Dim and Cut of a main control room speaker set and two alternate speaker sets. Furthermore, four monitor sets can be controlled with level and cut.

The signal output configuration of each speaker and monitor set can be configured to any format: mono, stereo, 5.1, 7.1, 9.1, and multi channel up to 64 channels, using any of the audio outputs of the NTP/DAD converter interface in any combination.

The sources for monitoring can be selected from any of configured signal sources. Sources can be selected to an monitor output as switched or more sources can be summed to a control room speaker or monitor output providing Stem summing functionality.

As for the outputs, source inputs can be configured to any format with any combination of audio inputs of the NTP/DAD converter interface.

Talk back functionality is available for any of the control room speaker and monitor outputs, and the talk back can activate Cut or Dim on any output as well.

On each of the control room speaker and monitor outputs a Folddown function can be applied. The Folddown can comprise of any of the 7 formats: Mono, Stereo, Left-Center-Right, Left-Center-Right-Sub, 5.1, 7.1 and 9.1 surround formats. On both the sources and the speaker and monitor outputs.
